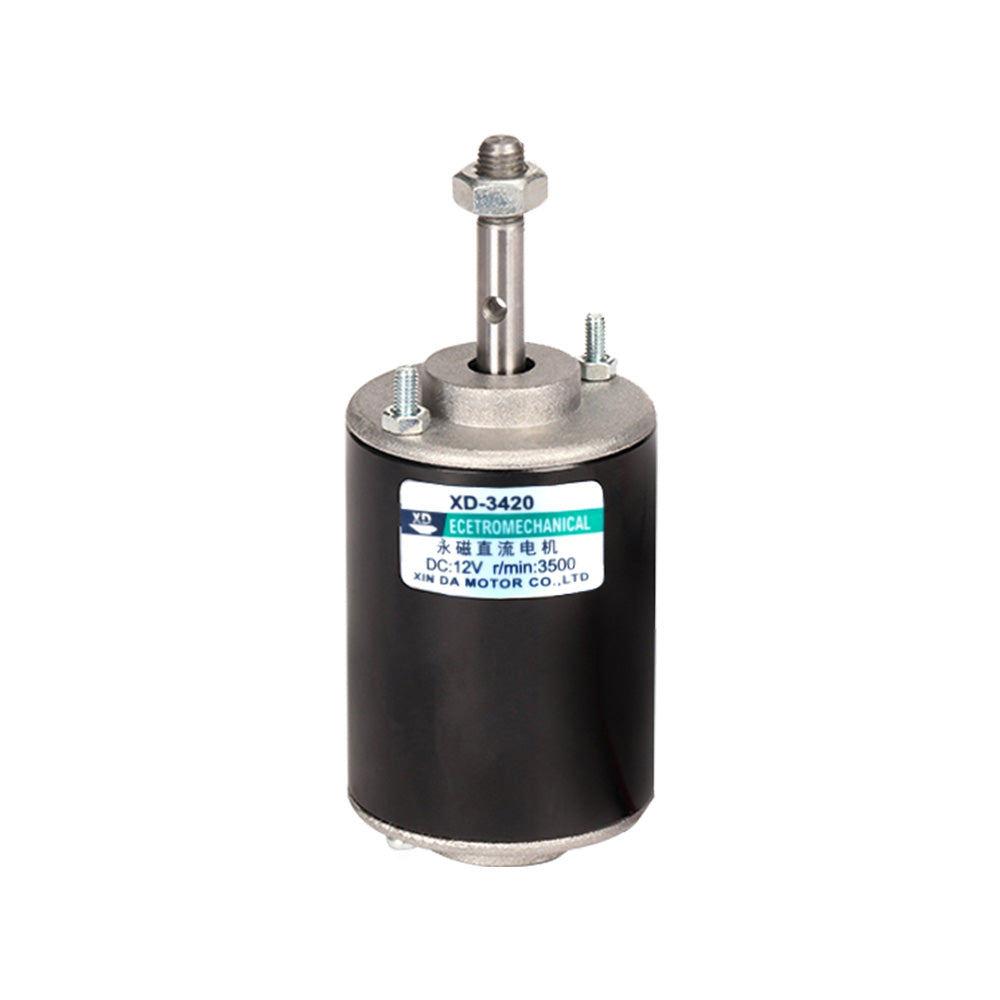

12V 30W Permanent Magnet DC Electric Motor High Speed CW & CCW Generator

12V 30W Permanent Magnet DC Electric Motor High Speed CW & CCW Generator

90UN115

$31.30 AUD
$31.30 AUD $62.60 AUD
Shipping calculated at checkout.

Features:
-- Drives super smooth with almost no noise, safe to use.
-- High speed 3000RPM and large torque.

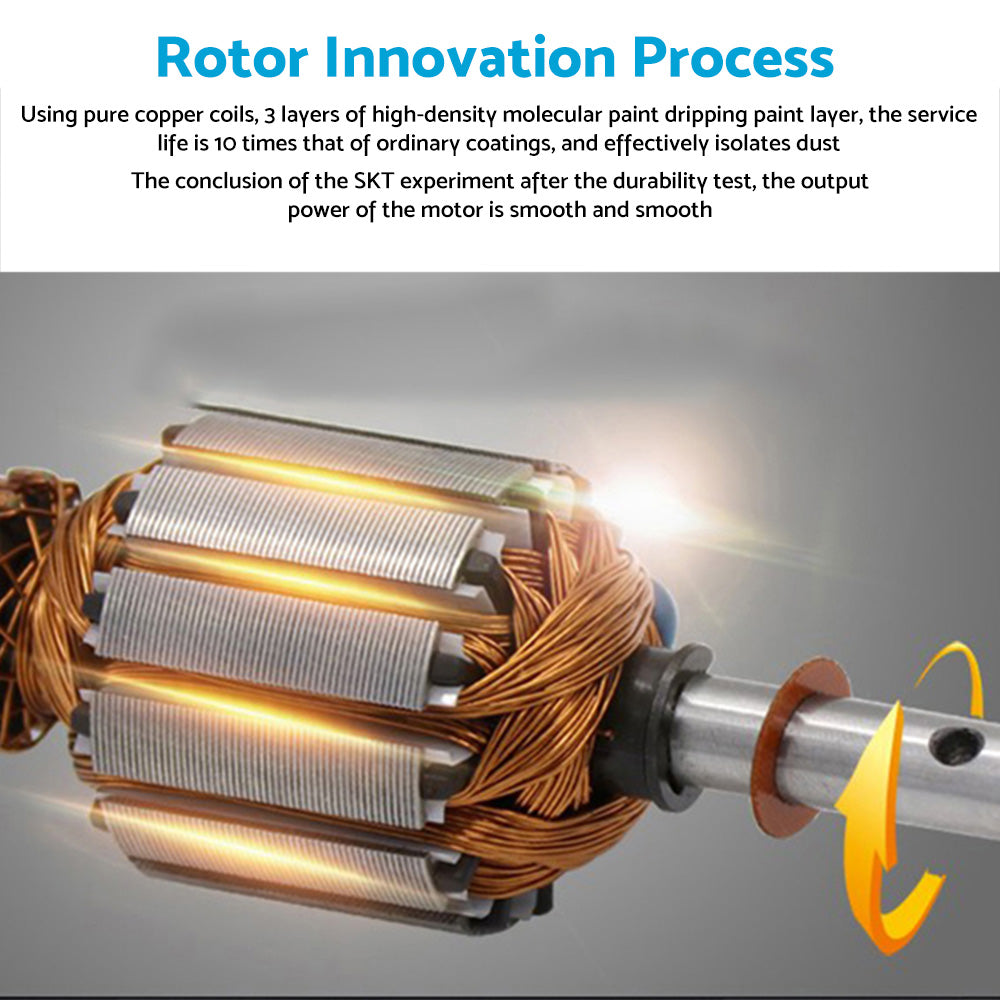

-- Copper wire stator windings: low heat, low loss, long life; supports CW/CCW with switch control (switch not included).
-- Requires external DC governor for speed adjustment.
-- Suitable for cotton candy machines, small cutting benches, grinding machines, medical equipment, and other mechanical equipment.
-- Ball bearing with small friction, strong oil seal, and high bearing capacity.

Specification:
Type: Brush DC Motor
Construction: Permanent Magnet
Speed (RPM): 3000rpm
Continuous Current (A): 0.5 A
Model: XD-3420
Rated Power: 30W
Rated Voltage: 12V
Rated Speed: 3500RPM (12V)
Adjustable Speed: Yes (requires variable speed controller)

Package Included:
1 x Permanent Magnet DC Motor

Note:
Please allow slight 1-2cm difference due to manual measurement and minor color variation due to different display settings.
