12V DC 200A Heavy Duty Car Relay Split Charge High Current 4Pin Starter Switch

• High 200A coil capacity- able to handle those high current applications with ease, Heavy duty make or break (on/off) relay.

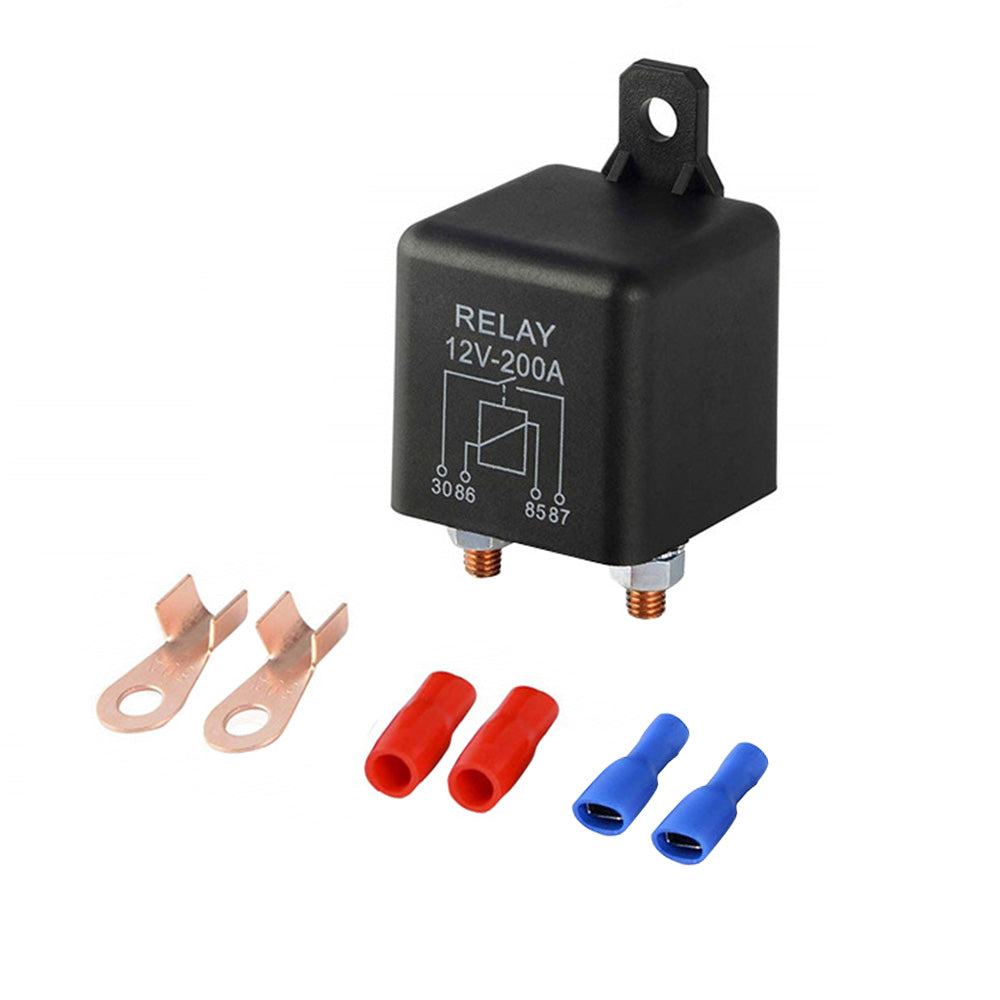

• With 2pin footprint + 2 terminal accessories, Hundreds of uses include- starter kills, domelight supervision, trunk release, polarity change, power door lock/actuator control.
• 100% brand new and high quality Durable & Firm & Stable Contact Load: High Power Ideal for universal 12V applications
• Vinyl install tools, building tools, industry tools, advertisement film install, mobile screen protective film install
• Scope of application:
• Widely used in remote control, telemetry, communication, automatic control, mechatronics, and power electronic equipment, it is one of the most important control components
• Contact Data:

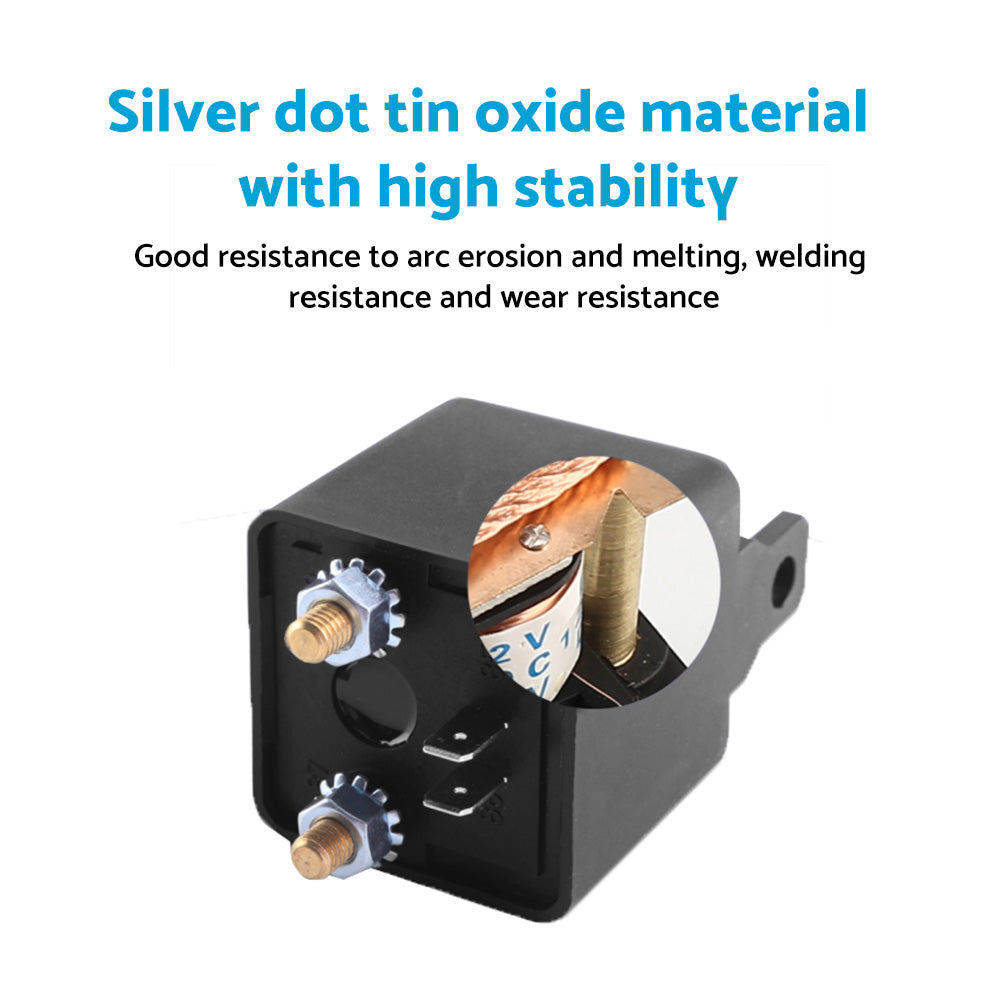

• Contact Material: AgSnO12
• Contact Ratings: No: 200A 14V DC
• Contact Resistance: 200mMax at 6V DC 1A
• Max switching Current: 200A
• Max Switching Voltage: 14VDC
• Max Switching Power: 100A
• Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)
• Life Expectancy Mechanical: 10,000,000 Operations
• Coil Specification:
• Rated voltage: 12V DC
• Resistance: 30 Ω
• Max Operate Voltage (VDC): 8.0
• Mix Release Voltage (VDC): 1.2
• Max Applicable Voltage (VDC): 14
• Characteristics:
• Temperature Range: -30°C ~+80°C
• Vibration Resistance: 10~55Hz, 1.5mm
• Shock Resistance:
• Operations Extremes: 10g
• Damage Limits: 100g
• Humidity: 40%~85%
• Insulation Resistance: 100m Ω Min at 500VDC
• Dielectric Strength Between Open Contacts 2000V AC (for one minute/sec)
• Between Contact and coil: 1500V AC (for one minute/sec)
• Operate Time: 15ms
• Release Time: 15ms
