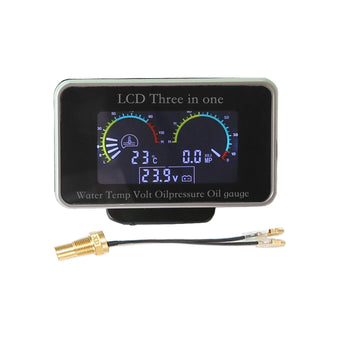

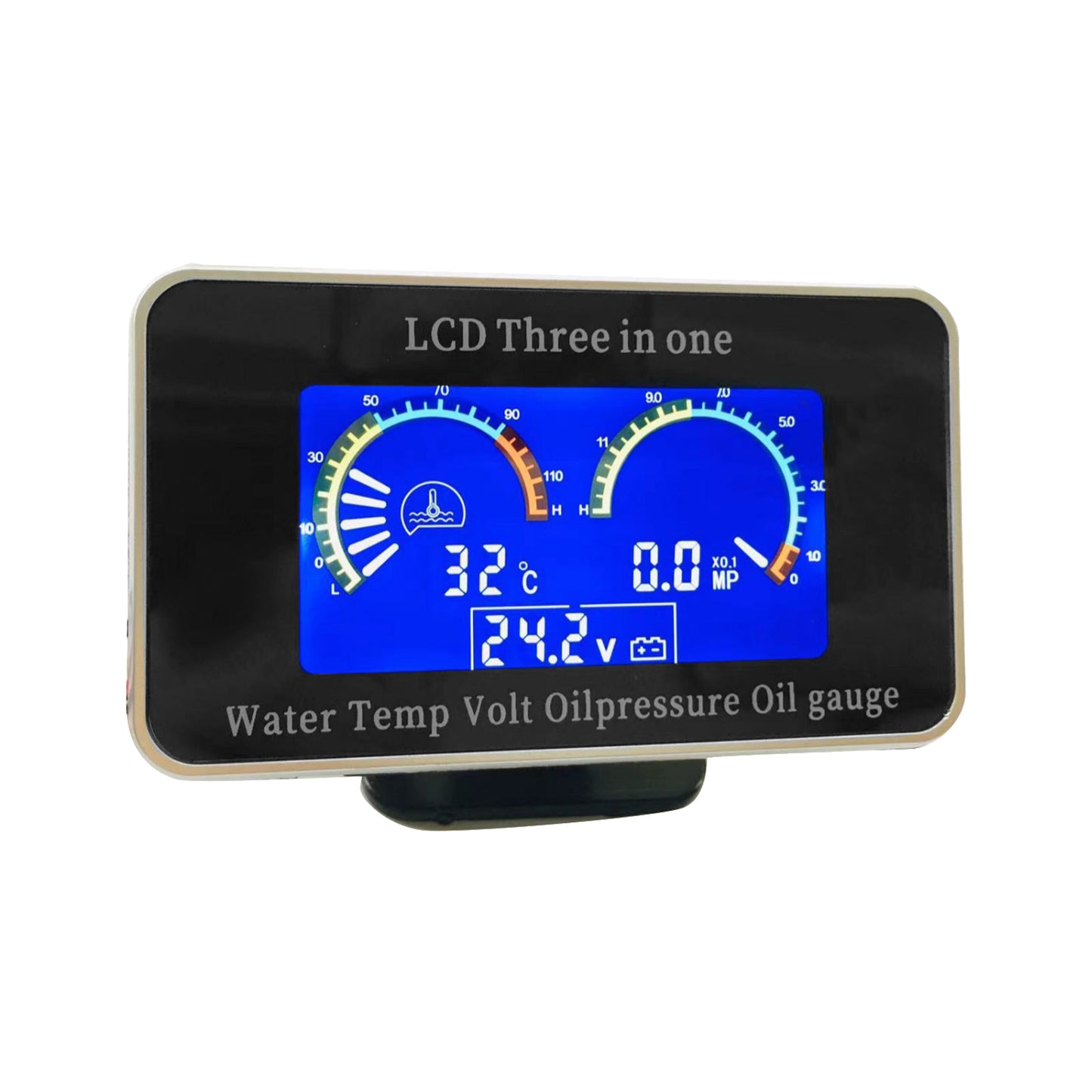

Description Car LCD 3-in-1 gauge designed to monitor water temperature, oil pressure, and voltage. Suitable for cars, motorcycles, and other compatible vehicles, providing accurate and stable readings for compressed air and oil measurement.
Features Digital display for clear and intuitive observation High-precision readings with low power consumption Easy installation with stable performance Anti-vibration and anti-bump design Flashing alarm display for critical readings

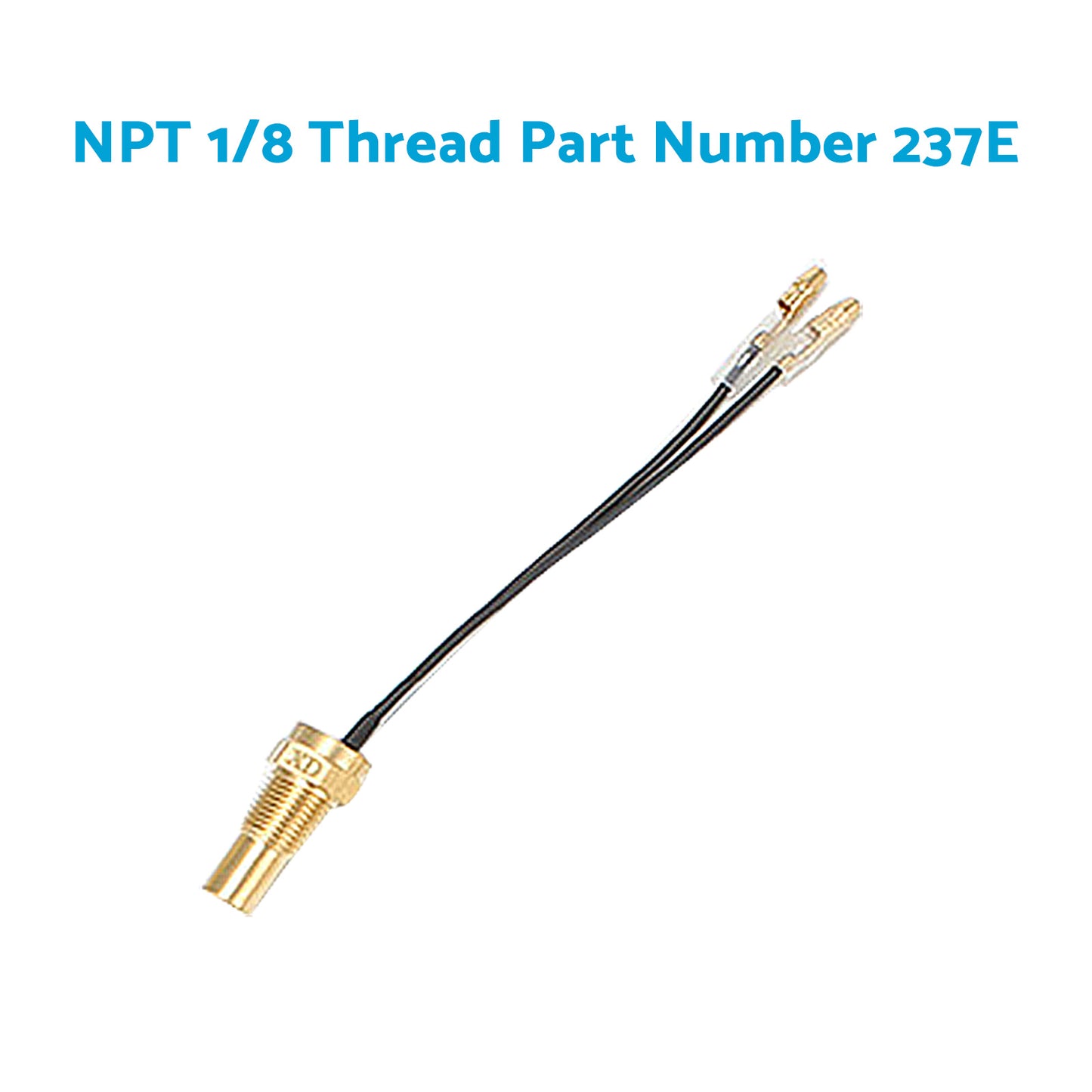

Specifications Material: Plastic Shell Product Size: 57mm x 97mm x 14mm Power Cable Length: Approx. 50cm Power Supply: DC 9V–36V Pressure Measuring Range: 0.00–1.00MPa Accuracy: ±1% Oil Pressure Measuring Range: (0–10) x 0.1MPa Water Temperature Range: -10℃ to 110℃ Ambient Temperature: -10℃ to 50℃ Measurement Speed: 3–5 seconds Water Temperature Sensor Screw: M10 Oil Pressure Sensor Thread: 1/8 NPT Default Alarm Value: Water Temperature > 95℃; Oil Pressure < 0.1MPa Voltage Detection: 12V System < 10V; 24V System < 20V, > 30V
Compatible With Suitable for cars, motorcycles, and other compatible applications Suitable for compressed air and oil measurement
Package Include 1 x Gauge 1 x Temperature Sensor 1 x Oil Pressure Sensor 1 x Set of Cables 1 x English Instruction Manual
Car LCD 3-in-1 gauge designed to monitor water temperature, oil pressure, and voltage. Suitable for cars, motorcycles, and other compatible vehicles, providing accurate and stable readings for compressed air and oil measurement.
Compatible With Suitable for cars, motorcycles, and other compatible applications Suitable for compressed air and oil measurement
Digital display for clear and intuitive observation
High-precision readings with low power consumption
Easy installation with stable performance
Anti-vibration and anti-bump design
Flashing alarm display for critical readings
SKU
159UN241114S10
Brand
MAXCOOL
Shipping Weight
0.3120kg
Condition
New
Warranty
12 Months
Loading compatibility data...
Make ⇅
Model ⇅
Years ⇅
Engine ⇅
1 x Gauge 1 x Temperature Sensor 1 x Oil Pressure Sensor 1 x Set of Cables 1 x English Instruction Manual
No notes available.
3-in-1 LCD Digital Gauge Suitable For Oil Pressure, Voltage & Water Temperature 12V / 24V Car & Truck
Description Car LCD 3-in-1 gauge designed to monitor water temperature, oil pressure, and voltage. Suitable for cars, motorcycles, and other compatible vehicles, providing accurate and stable readings for compressed air and oil measurement.
Features Digital display for clear and intuitive observation High-precision readings with low power consumption Easy installation with stable performance Anti-vibration and anti-bump design Flashing alarm display for critical readings
Specifications Material: Plastic Shell Product Size: 57mm x 97mm x 14mm Power Cable Length: Approx. 50cm Power Supply: DC 9V–36V Pressure Measuring Range: 0.00–1.00MPa Accuracy: ±1% Oil Pressure Measuring Range: (0–10) x 0.1MPa Water Temperature Range: -10℃ to 110℃ Ambient Temperature: -10℃ to 50℃ Measurement Speed: 3–5 seconds Water Temperature Sensor Screw: M10 Oil Pressure Sensor Thread: 1/8 NPT Default Alarm Value: Water Temperature > 95℃; Oil Pressure < 0.1MPa Voltage Detection: 12V System < 10V; 24V System < 20V, > 30V
Compatible With Suitable for cars, motorcycles, and other compatible applications Suitable for compressed air and oil measurement
Package Include 1 x Gauge 1 x Temperature Sensor 1 x Oil Pressure Sensor 1 x Set of Cables 1 x English Instruction Manual
