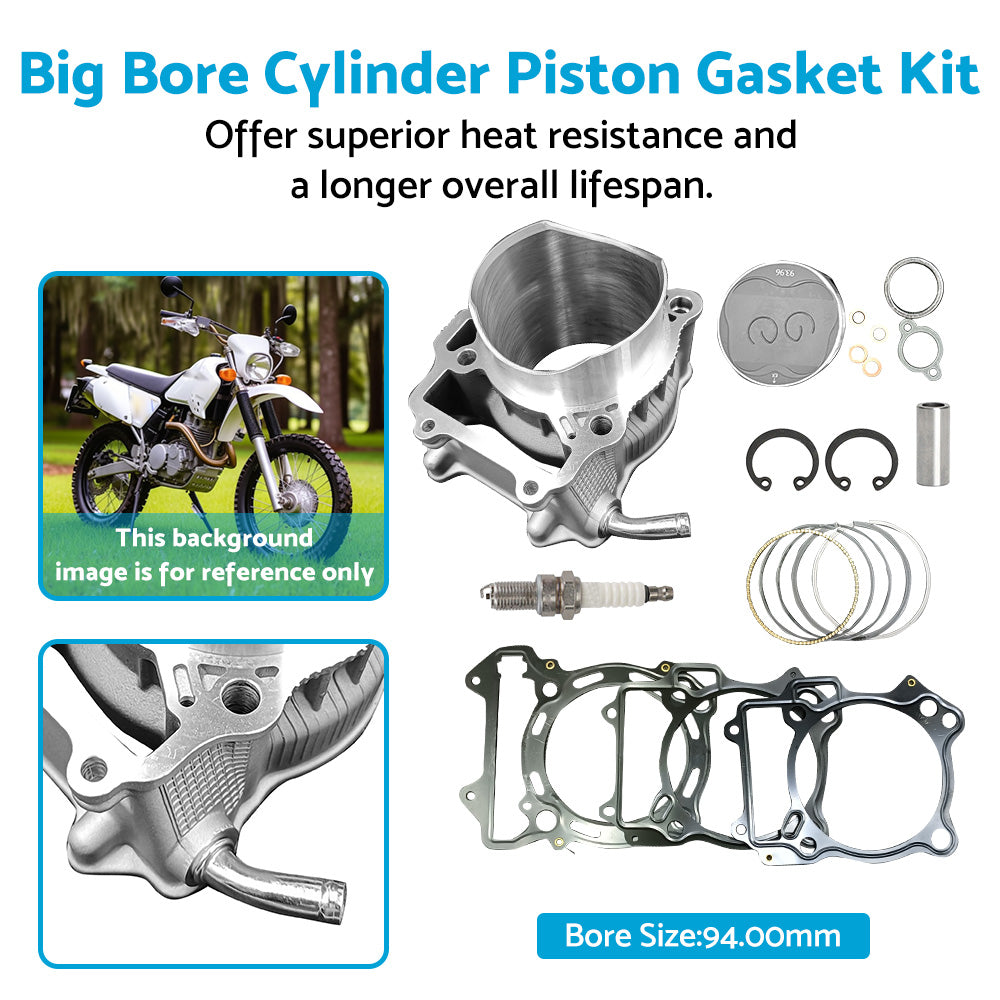

434cc Big Bore Cylinder Piston Gasket Kit Suitable For Suzuki DR-Z 400 2000-2021

Feature:

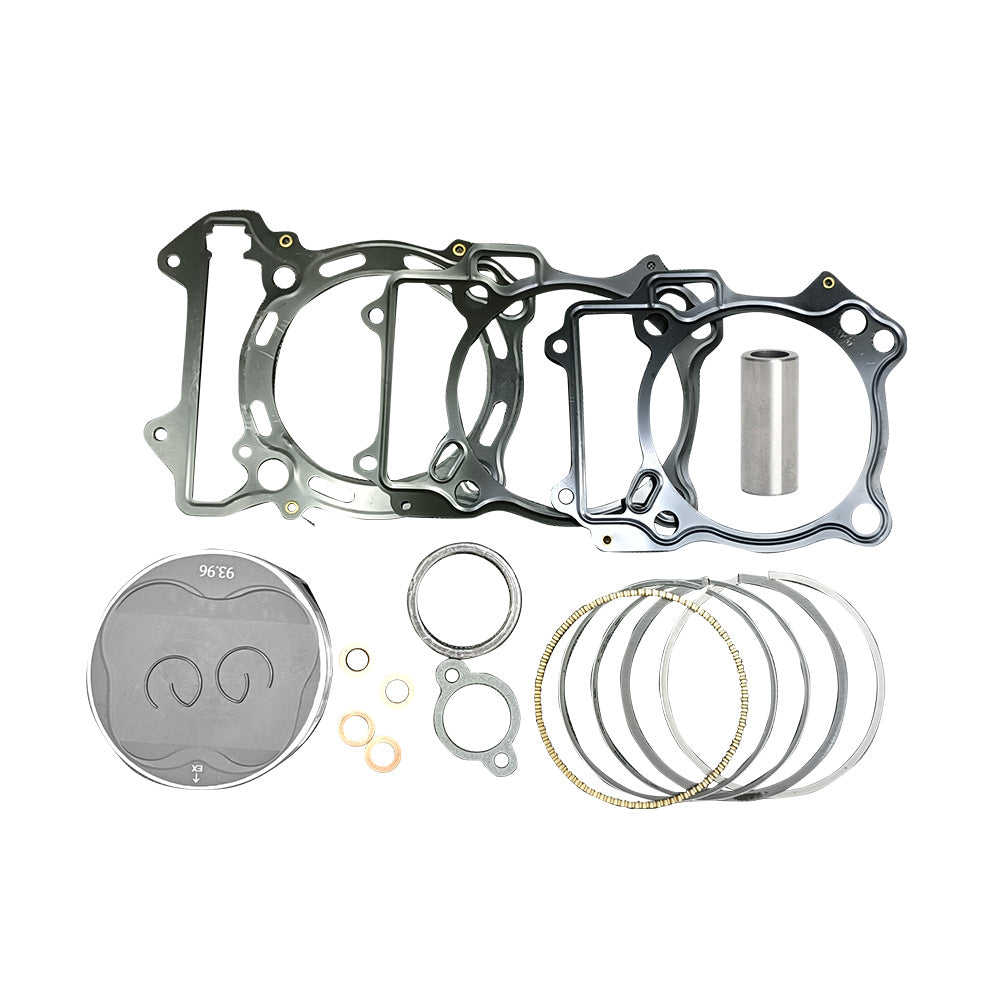

-This kit comprises a piston, rings, pin, clips, and a top-end gasket kit (you receive exactly what is shown in the picture).

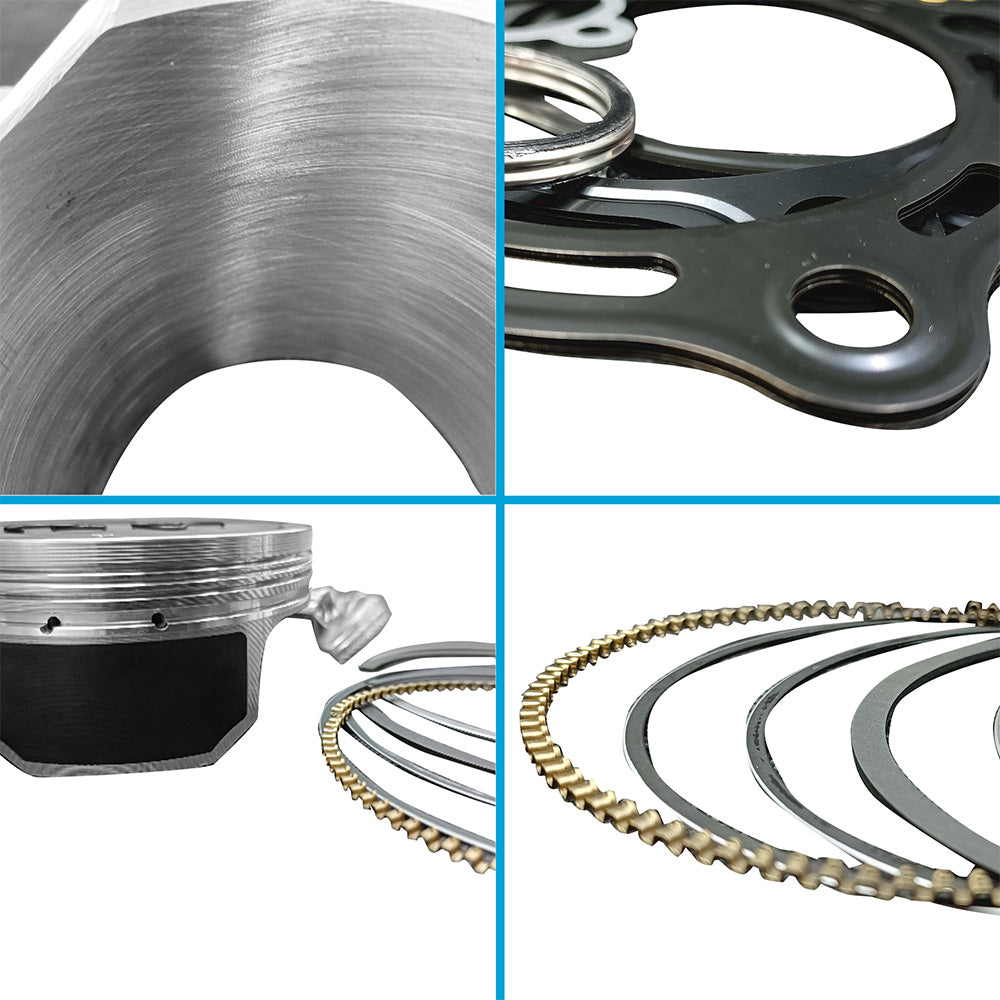

-The cast piston boasts an exceptionally high silicone content, enhancing its strength.
-Piston skirts feature a Molybdenum Teflon coating to reduce friction, minimize wear, and extend their lifespan.
-The piston dome is anodized, offering superior heat resistance and a longer overall lifespan.

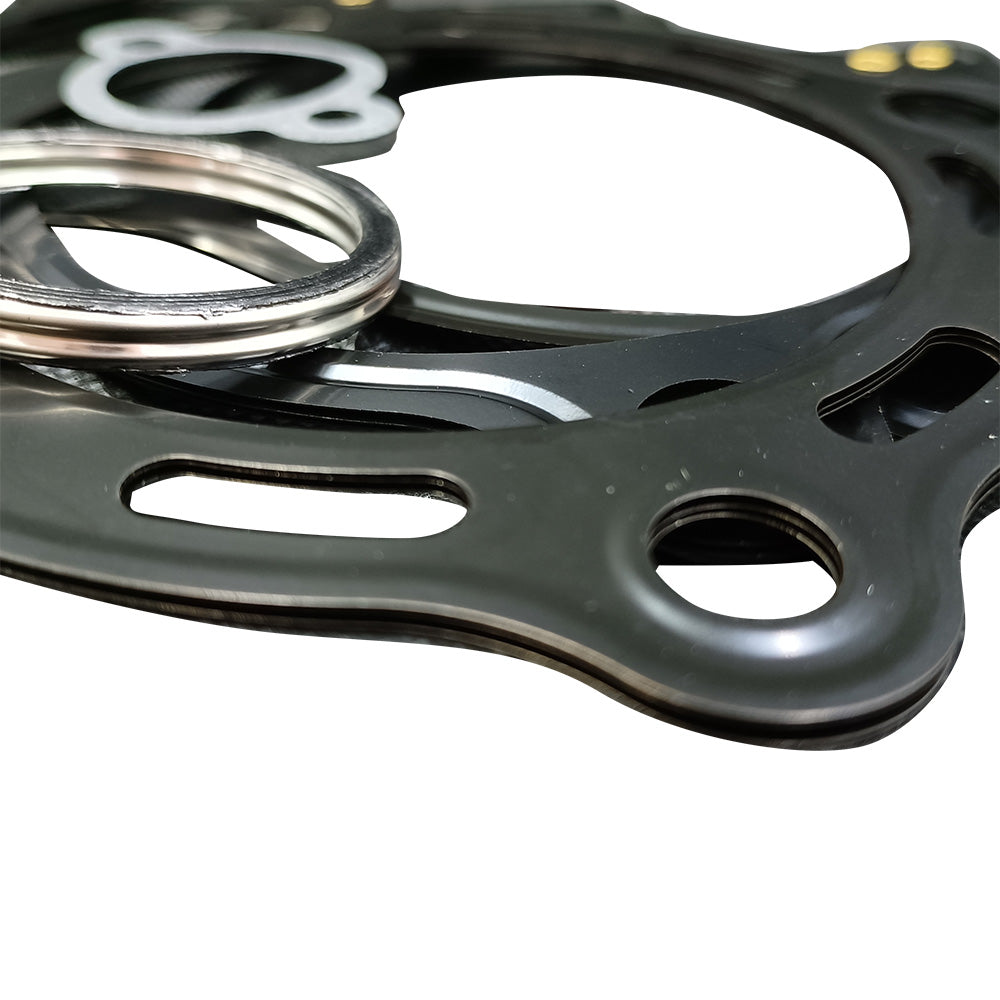

-The gaskets are crafted from high-performance materials to enhance durability and provide increased reliability.
-This kit includes all the gaskets needed for a top-end rebuild.
-Designed for a big bore size of 94.00 mm.
-Every component in this kit is ready for easy bolt-on installation, ensuring a hassle-free setup.

Specification:
Type: Top End Rebuild Kit

Piston Material: Forged Aluminum
Actual Displacement: 434cc
Bore Type: Big Bore
Bore Size: 94.00mm
Stroke: 62.60mm
Replacement Part Number:
Compatible with Suzuki LTZ400
Cylinder: 11210-29F20-0F0
Cylinder Base Gasket: 11241-29F10, 11241-29F11
Cylinder Head Gasket: 11141-29F01
Chain Tensioner Gasket:
Piston: 12111-29F00-0F0
Pin, piston: 12151-24F10
Ring Set, piston: 12140-29F00
Circlips, piston: 09381-20004
Head Cover Washser: 11191-13E00
Washers(4): 09160-10082 10.5x19x2.0

Compatible with Kawasaki KFX400
Cylinder: 11005-S007
Cylinder Base Gasket: 11061-S070, 11061-S091
Cylinder Head Gasket: 11004-S006
Chain Tensioner Gasket: 11061-S073
Piston: 13001-S006
Pin, piston: 13002-S006
Ring Set, piston: 13008-S008
Circlips, piston: 92033-S040
Washers(4): 92200-S009 10.5x19x2.0
Washer: 92200-S015
Compatible with Arctic Cat DVX400
Cylinder: 3402-844
Cylinder Head Gasket: 3402-841
Chain Tensioner Gasket: 3402-137
Piston: 3402-846
Ring Set, piston: 3502-011
Circlips, piston: 3003-439,3402-845,3402-847,3402-841

Fitment:
Compatible with Suzuki DR-Z400 2000-2021
Compatible with Suzuki DRZ400SM 2005-2009/2013-2021
Compatible with Suzuki DRZ400S 2000-2009/2011-2021
Compatible with Suzuki DRZ400E 2000-2007
Compatible with Suzuki LTZ 400 Quadsport Z400 2003-2014
Compatible with Kawasaki KFX400 2003-2006
Compatible with Arctic Cat DVX 400 2004-2008
(The Compatibility Chart is provided as a reference ONLY!)
(Please carefully compare your faulty unit with the image we've supplied to determine if it fits correctly.)

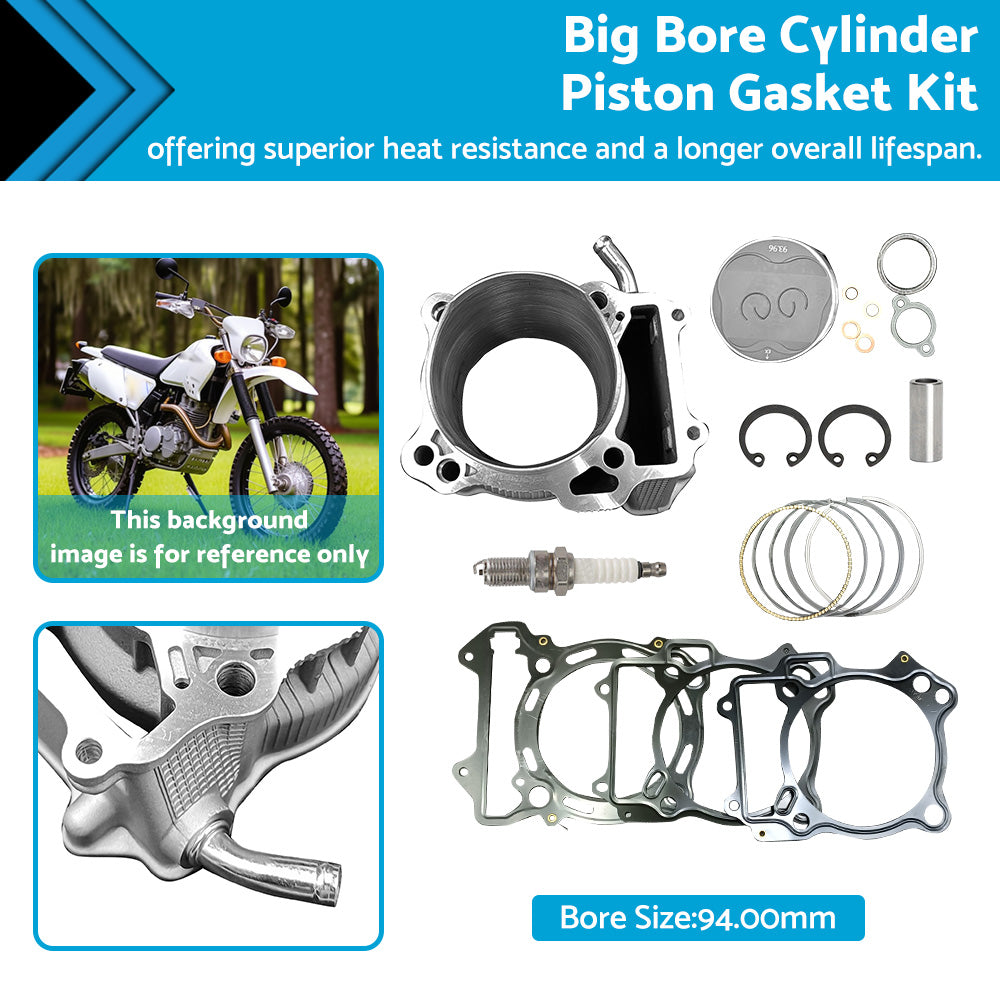

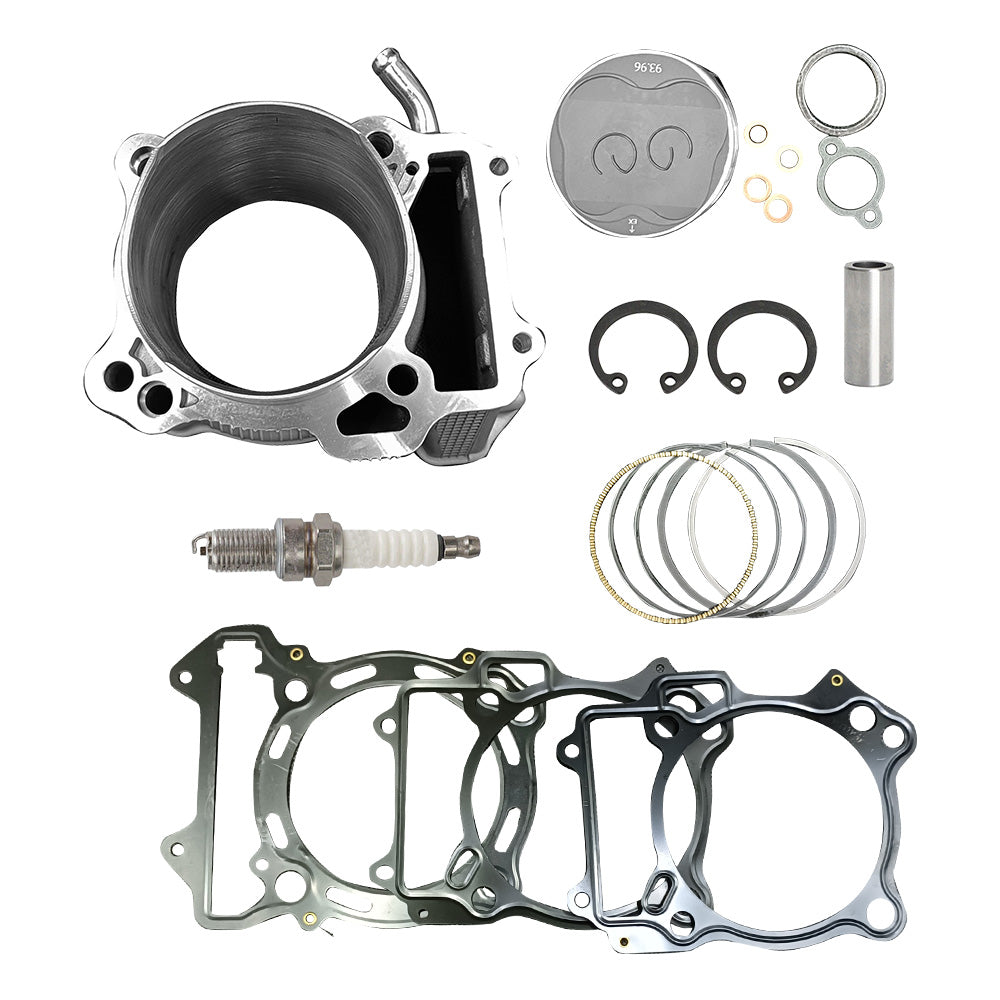

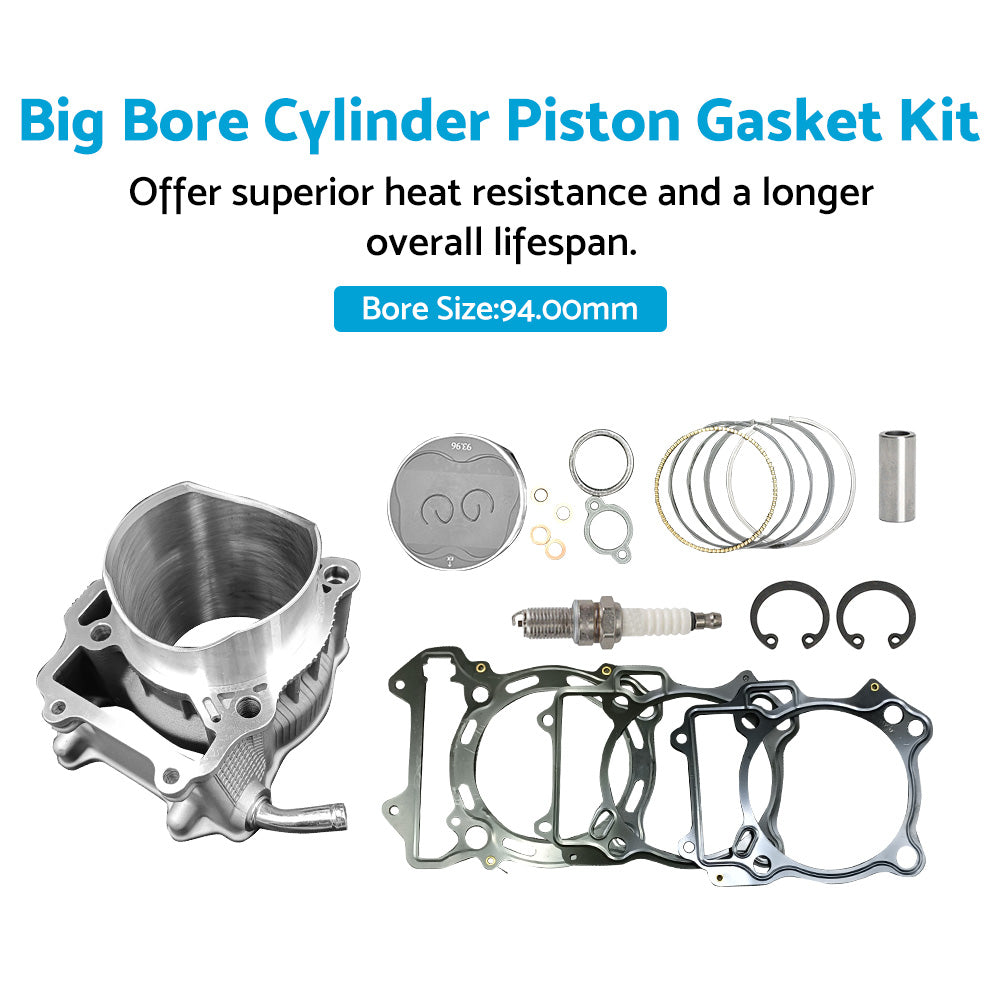

Package Including:

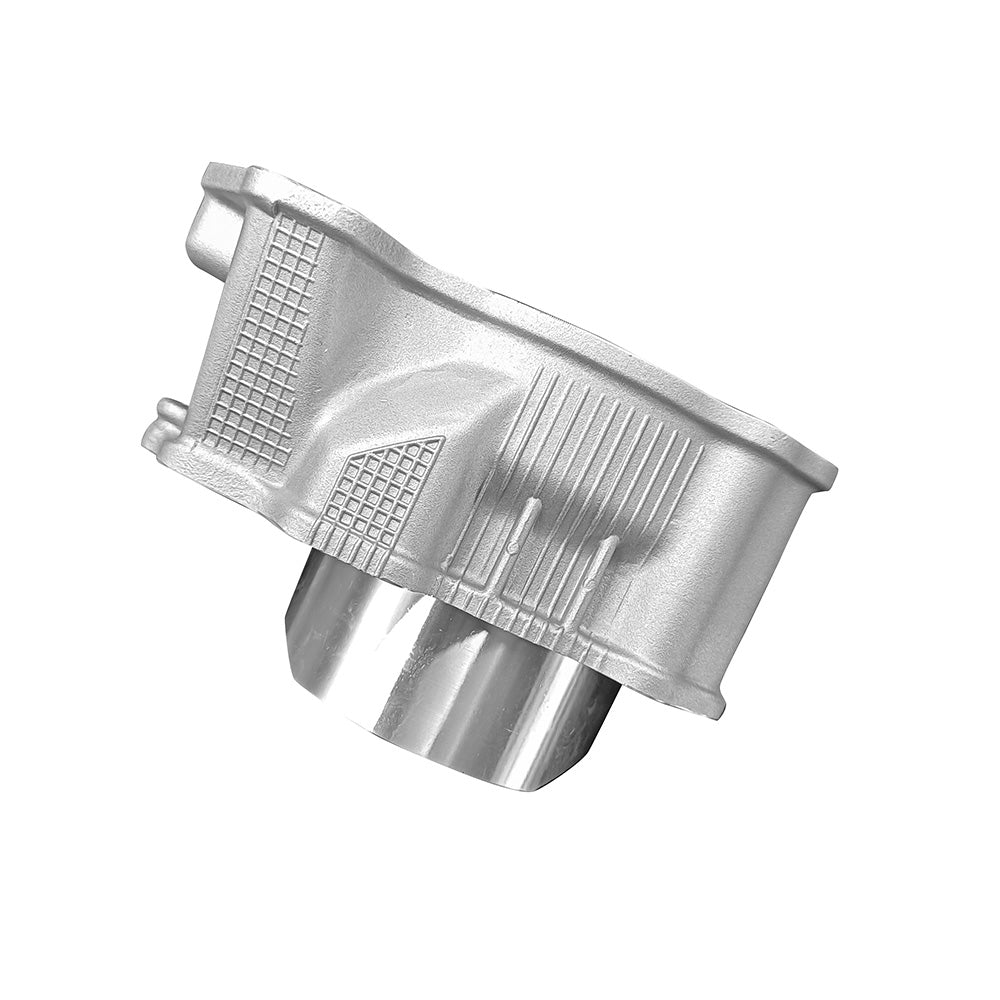

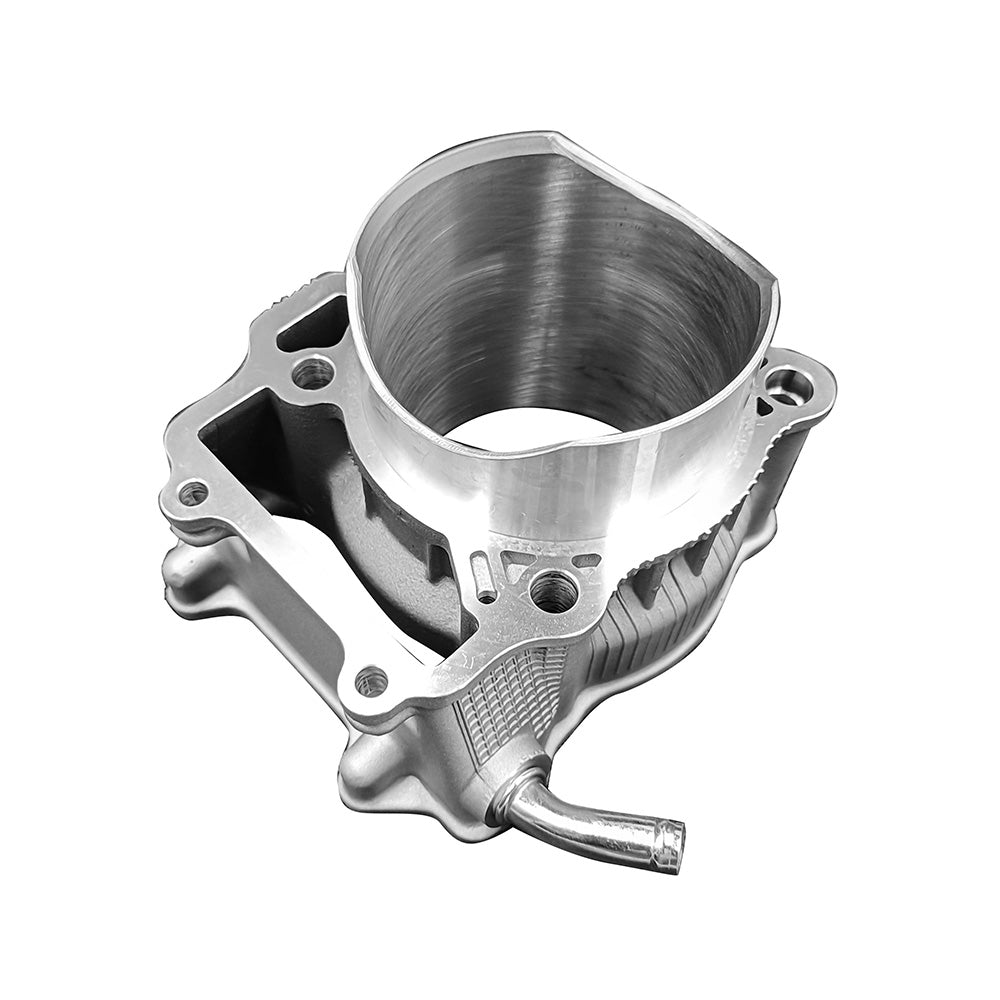

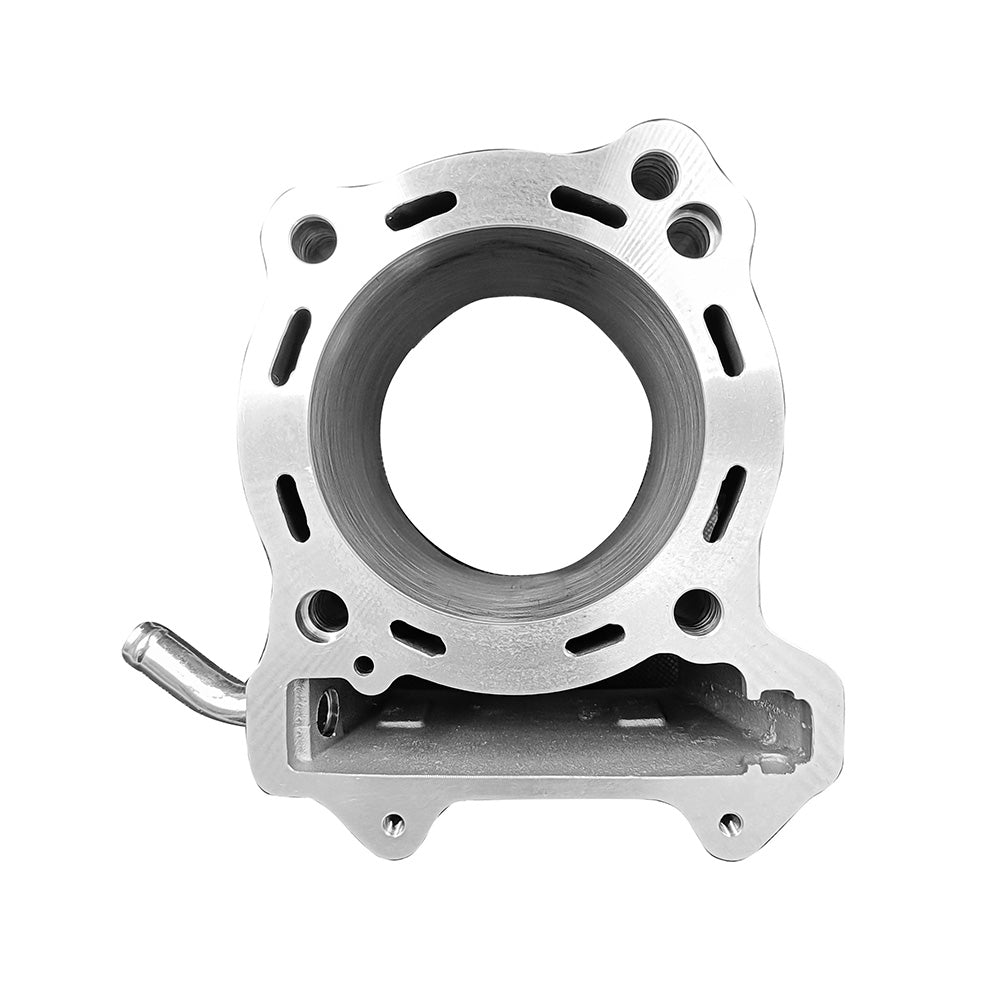

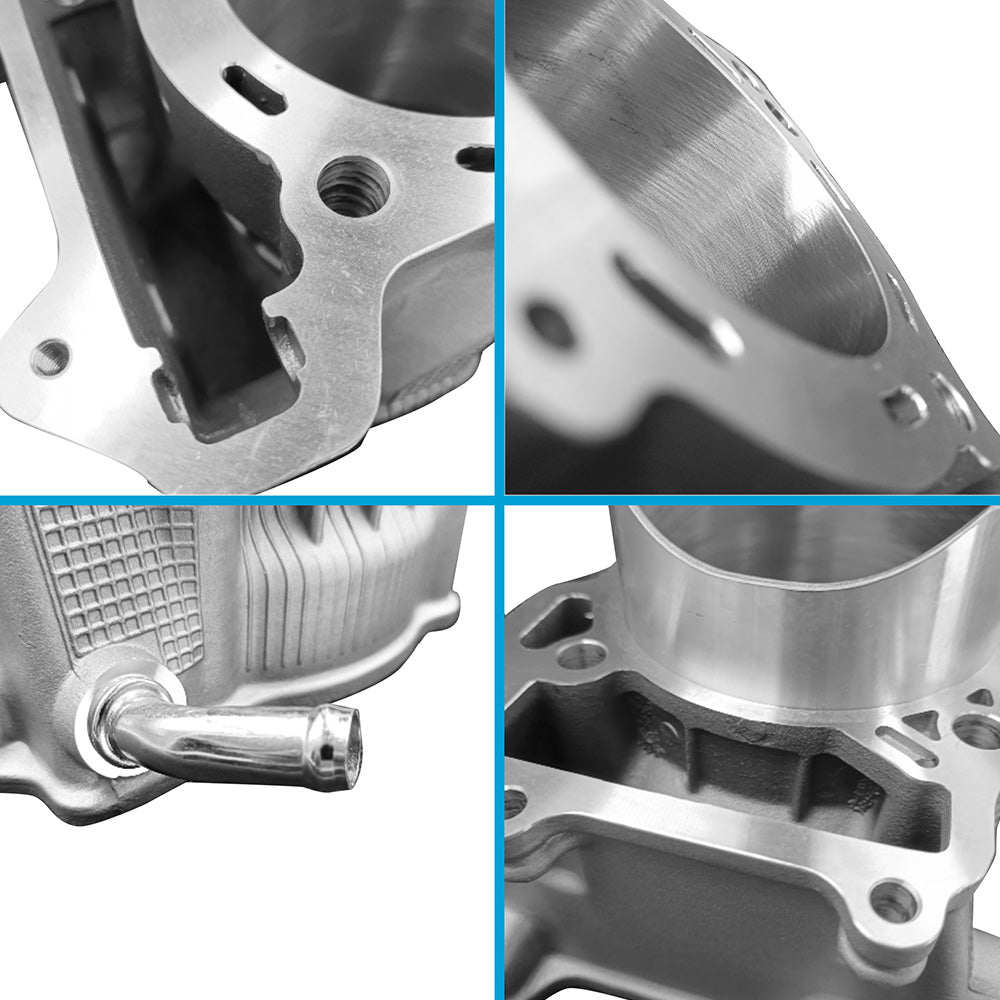

1x 94mm Cylinder
1x Piston

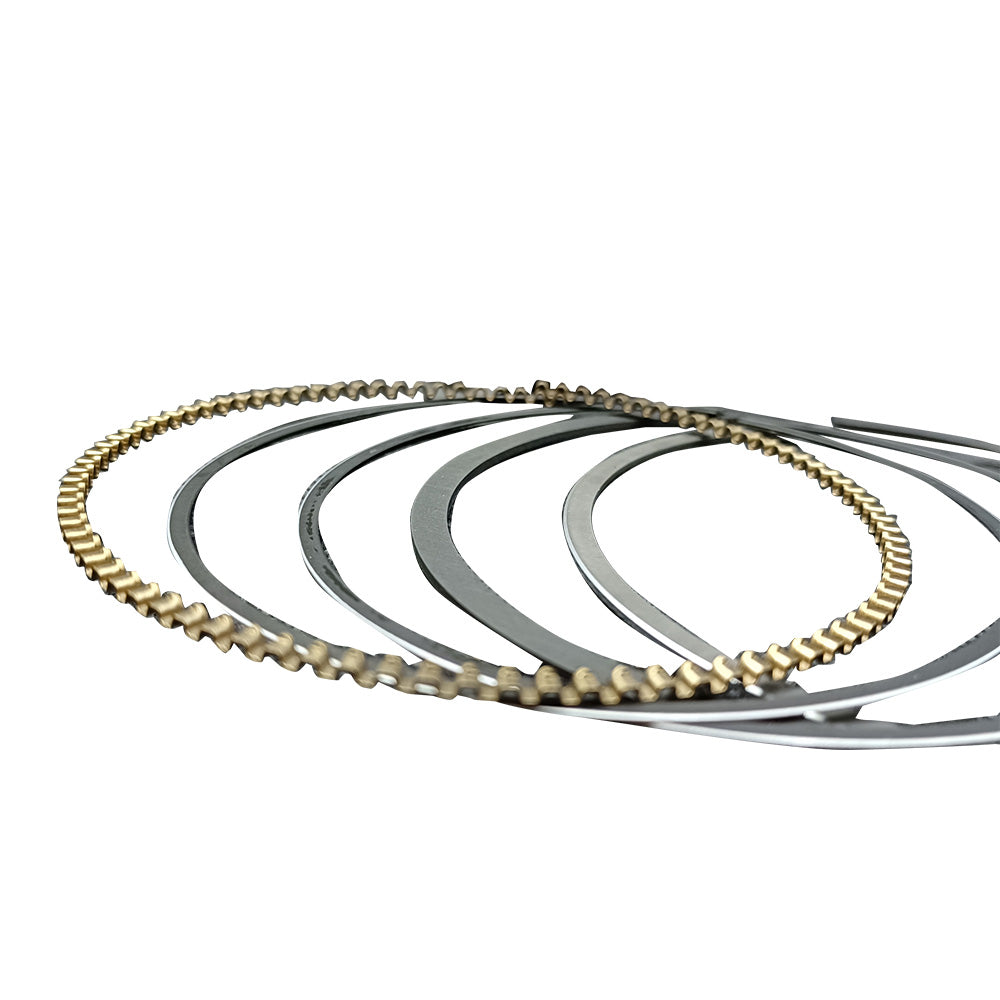

1x Piston Ring Set

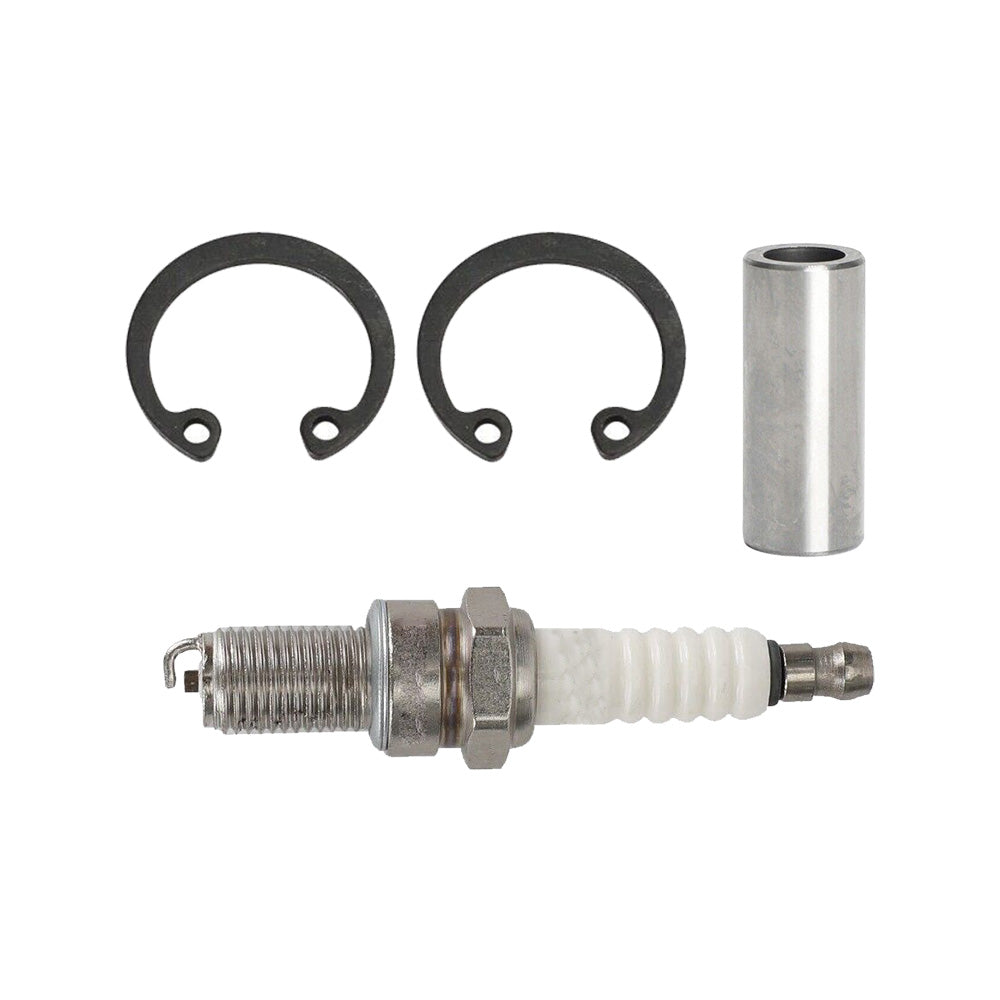

1x Wristpin
1x Circlip(2)

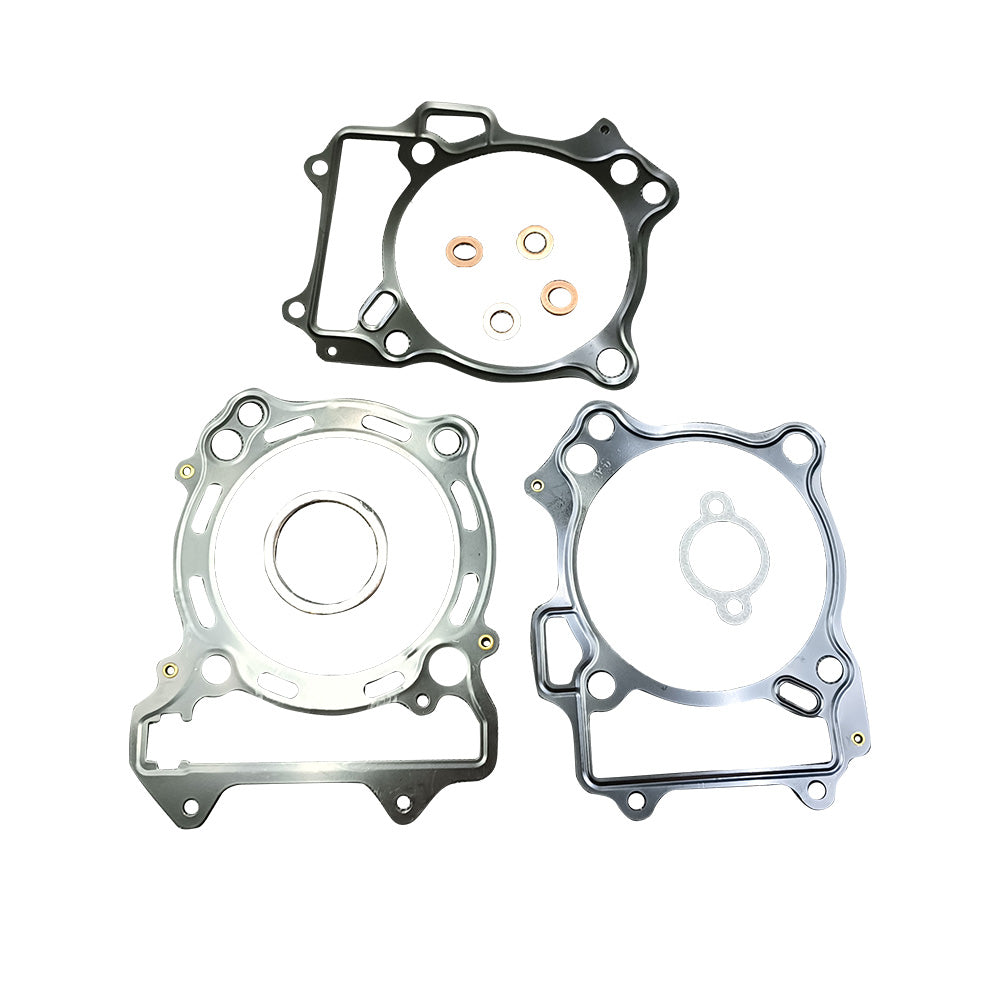

2x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
1x Head Cover Washser
4x Valve Washers
1x Spark Plug

Note:
Ring end gaps have been verified for proper sizing prior to shipment.
Please verify the product's compatibility with your motorcycle's size before purchasing.
