IntercoolerFan For Nisaan GU Y61 3. 0L CRD ZD30 Diesel Common Rail 07-12

Fitment:

Compatible with 2007-2012 Nissan Patrol GU Y61 3.0L Diesel 4CYL ZD30

Intercooler:

Feature:

-Pressure tested to over 55PSI

-Direct Replacement Hi-flow Bar and Plate unit

-Single piece cast unit will not leak like original

-Plateished in T-6061 aluminium alloy

-Accepts all original sensors

Specification：

Core Size: 235 x 220 x 70 mm

Bar and Plate Core

Inlet/Outlet: 60 mm

Fan：

Feature:
-Universal, Designed to be mounted direct on the radiator or Intercooler with the fitting kit supplied.
-This upgrade fan can produce up to double the cooling power of some OEM fans

Specification:
Fan Size: Universal 9" Fan (8.5 inch blades).
Motor: 12V 80W
Fan Cooling Spec: up to a Max of 1450 CFM per fan


Note:
-This fan can be configured as a puller or pusher, if mounted on the inside it will pull the air through the radiator.
-However, the polarity of the wiring can be reversed and the blades can be turned so it becomes a pusher mounted on the outside to push air through the radiator

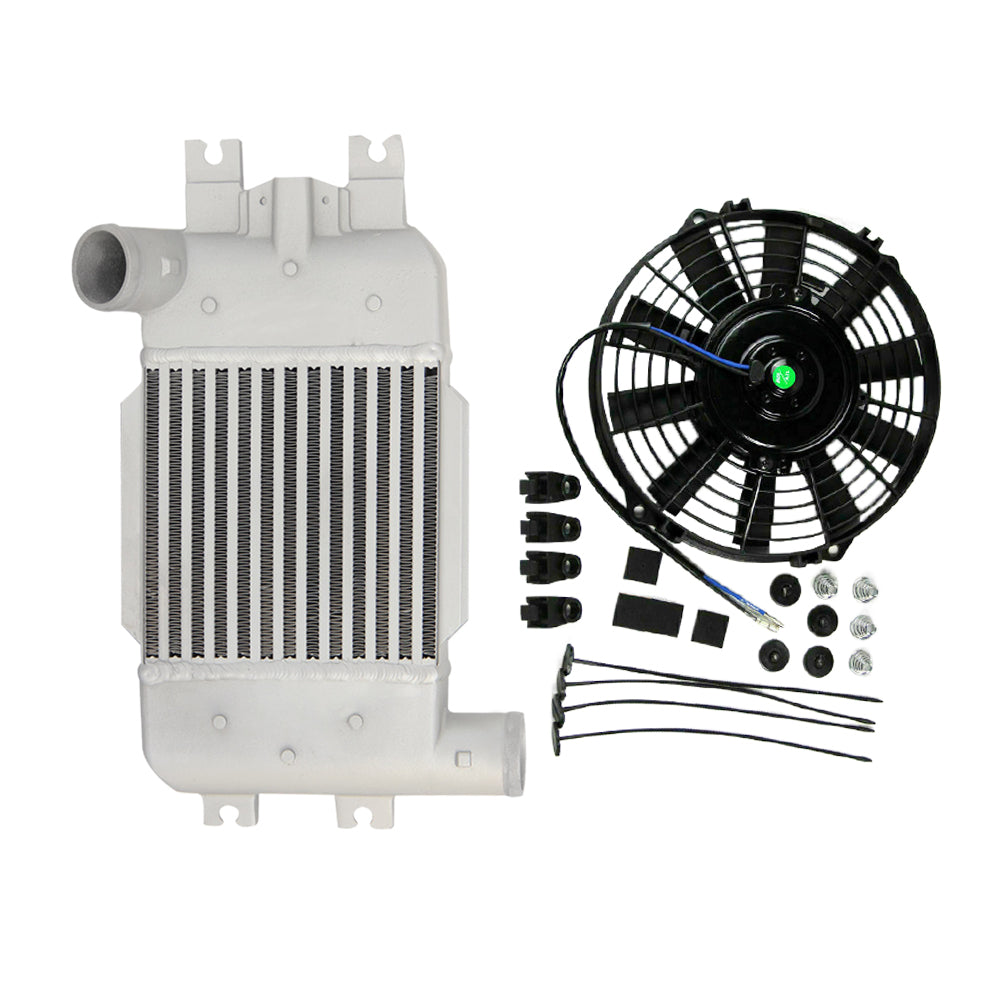

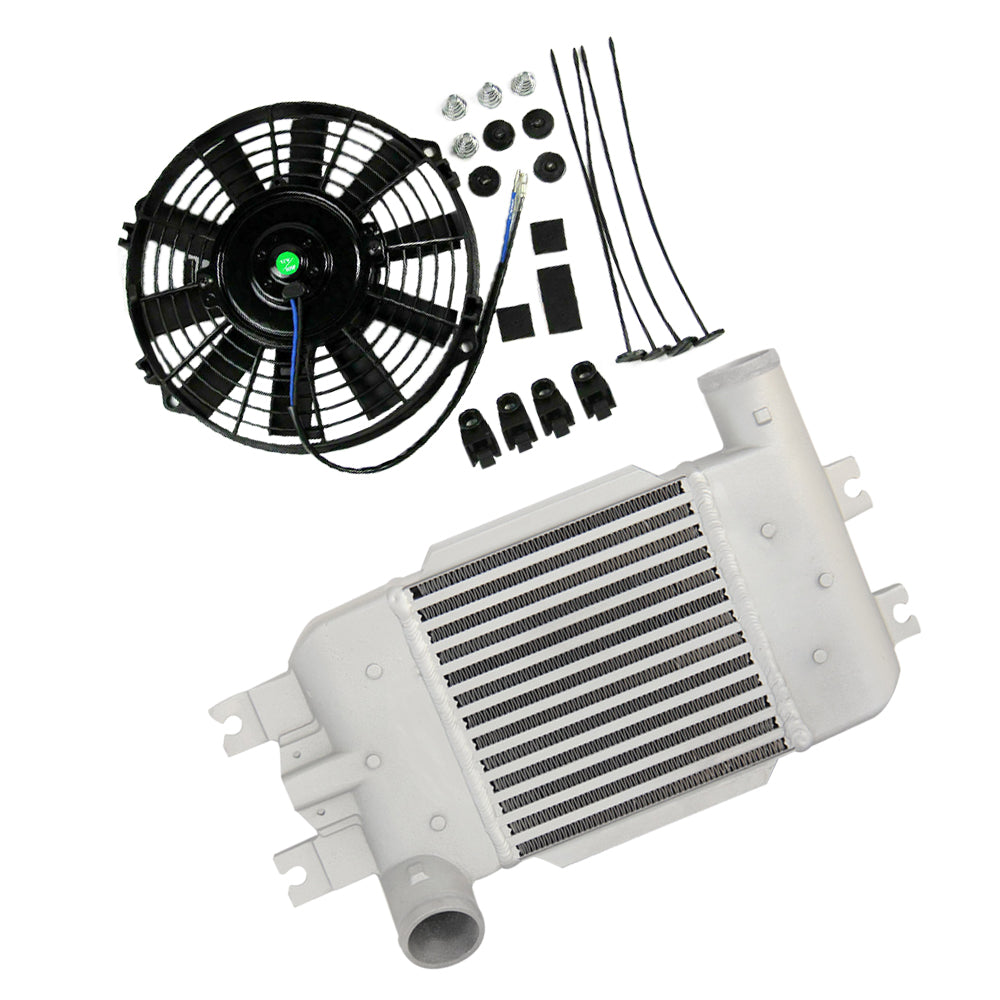

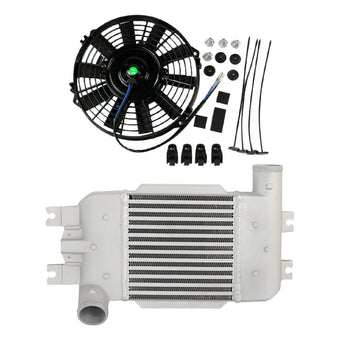

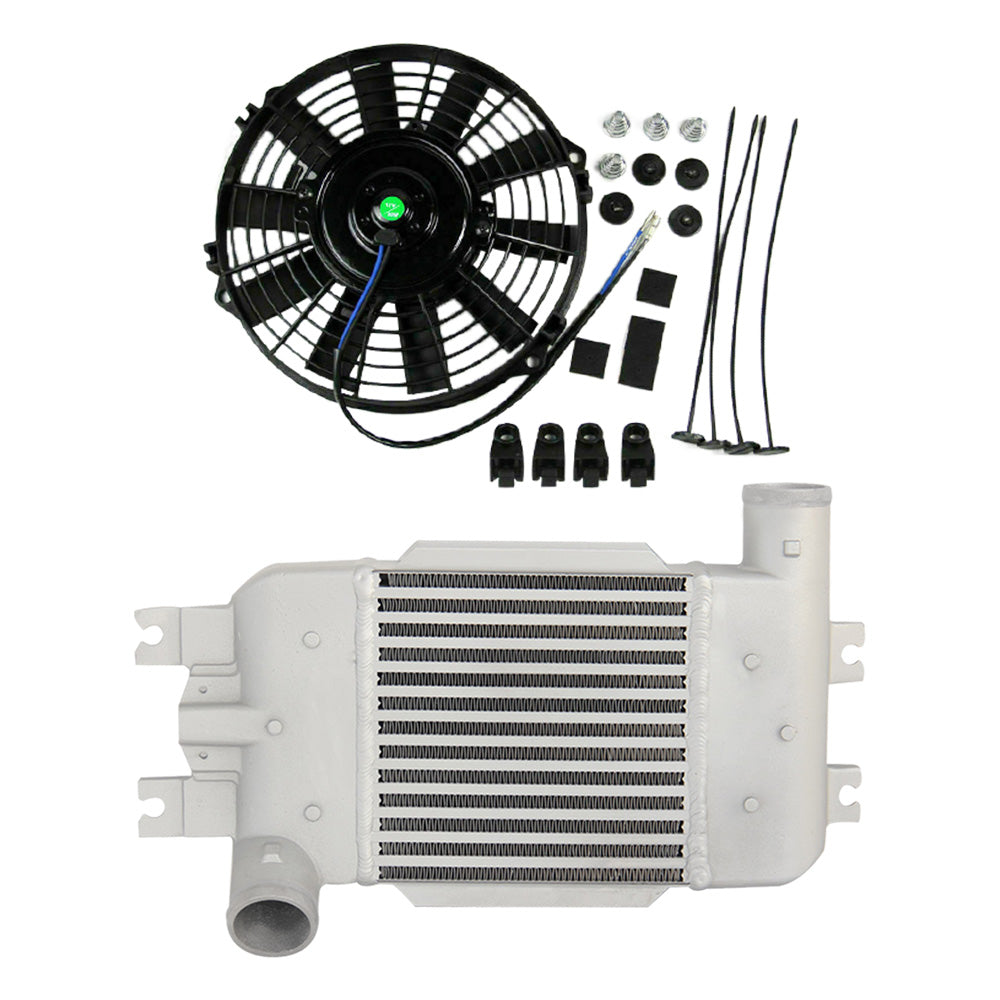

Package Including：

1x Intercooler
4x Plastic Threaded Tie Rods
4x Locking Washers
2x Protective pads
4x Dampening Springs
4x L shaped brackets

Important Notice:

-The Intercooler is direct injection hi flow, Bar and Plate design replacement for the OEM part which provides superior strength from the original design.

- Professional installation is highly recommended (No Instruction Included)

- For any needs please contact us.
