Intercooler Kit Fan Suitable For Nissan GU Y61 3.0L CRD ZD30 Diesel Common Rail 2007-2012

Compatible With:
Suitable For 2007-2012 Nissan Patrol GU Y61 3.0L Diesel 4CYL ZD30

Intercooler:

Feature:
- Pressure tested to over 55PSI
- Direct Replacement Hi-flow Bar and Plate unit
- Single piece cast unit will not leak like original
- Plateished in T-6061 aluminium alloy
- Accepts all original sensors

Specification:
Core Size: 235 x 220 x 70 mm
Bar and Plate Core
Inlet/Outlet: 60 mm

Fan:

Feature:
- Universal, Designed to be mounted direct on the radiator or Intercooler with the fitting kit supplied.
- This upgrade fan can produce up to double the cooling power of some OEM fans

Specification:
Fan Size: Universal 9" Fan (8.5 inch blades)
Motor: 12V 80W
Fan Cooling Spec: up to a Max of 1450 CFM per fan

Note:
- This fan can be configured as a puller or pusher, if mounted on the inside it will pull the air through the radiator.
- However, the polarity of the wiring can be reversed and the blades can be turned so it becomes a pusher mounted on the outside to push air through the radiator

Package Including:
1x Intercooler
2x Aluminium intercooler pipe
4x Silicone hose
8x Stainless steel clamp
4x Plastic Threaded Tie Rods
4x Locking Washers
2x Protective pads
4x Dampening Springs
4x L shaped brackets

Pipes diameter:
the left is 63mm (2.5"), the right is 51mm (2.0")

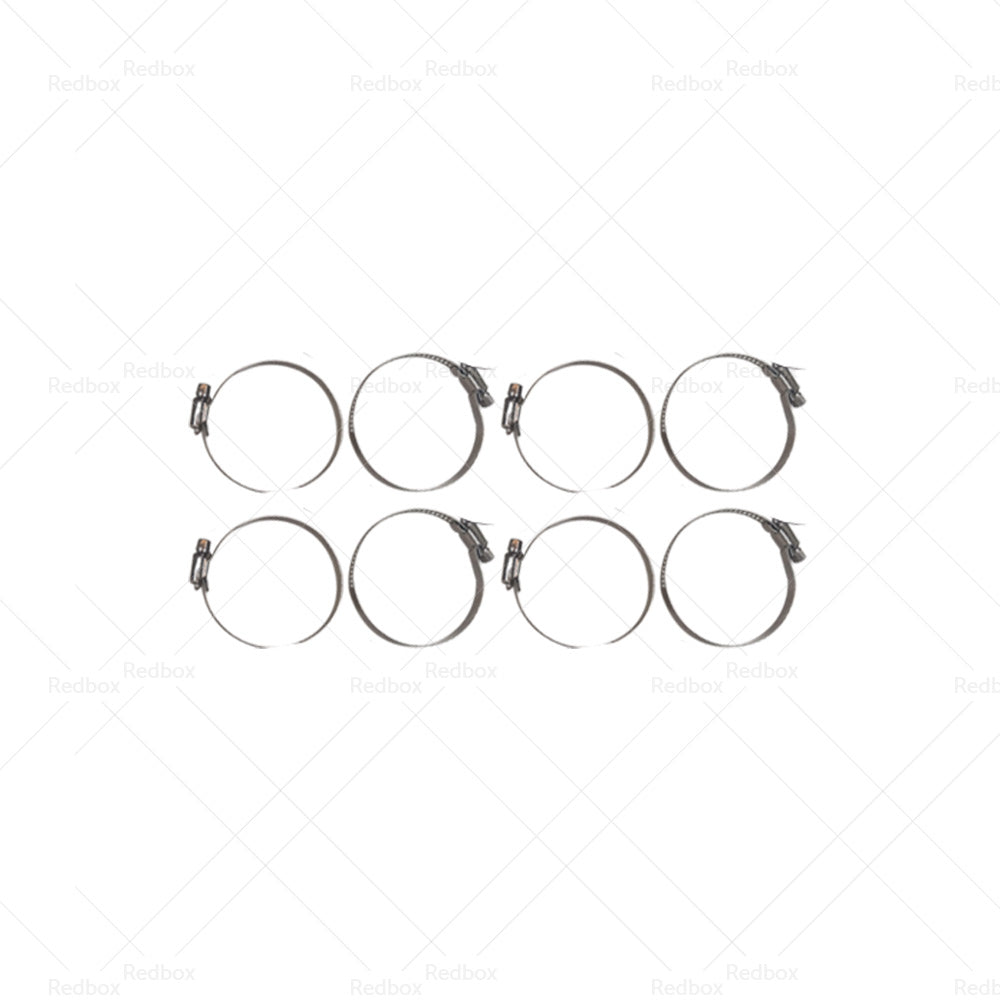

Clamps:
1x 59-82mm
2x 51-76mm
2x 46-70MM
2x 40-64MM
1x 35-57MM

Silicone hose:
1x 80mm (length) 63mm (Hose diameter)
1x 93mm (length) 60-63mm (Hose diameter)
1x 80mm (length) 50-60mm (Hose diameter)
1x 80mm (length) 43-51mm

Important Notice:
- The Intercooler is direct injection hi flow, Bar and Plate design replacement for the OEM part which provides superior strength from the original design.
- Professional installation is highly recommended (No Instruction Included)
- For any needs please contact us.
